| Product Name | X96Q Pro Allwinner H313 set top boxes |
| Model No. | X96Q Pro |
| CPU | Allwinner H313 Quad Core ARM Cortex A53 |
| GPU | Mail-G31 OpenGL ES 3.2 |
| RAM+ROM | (1+8G) (2+16G) |
| OS | Android 10 |
| Ethernet | 100M Ethernet |
| WIFI | WIFI 2.4G |
| USB | USB 2.0 |
| Bluetooth | not support bluetooth |
| Resolution | 4K |
| Application | Google Play, Aptoide, Kodi 16.1, YouTube, Netflix, Game app (KO GameBox) BangTV, Mobdro, Show Box etc. |
| Video decoding |
Allwinner Video Engine (AVE) with dedicated hardware decoders and encoders Support multi-video decoder up to 4K@60fps Supports multiple “secured” video decoding sessions and simultaneous decoding and encoding Video/Picture Decoding - VP9 Profile-2 up to 4K@30fps - H.265 [email protected] up to 4K@60fps - AVS2 JiZhun 10bit Profile up to 4K@60fps - H.264 BP/MP/[email protected] up to 4K@30fps - H.263 BP up to 1080P@60fps - MPEG-4 SP/ASP@L5 up to 1080P@60fps - MPEG-2 MP/HL up to 1080P@60fps - MPEG-1 MP/HL up to 1080P@60fps - Xvid up to 1080P@60fps - Sorenson Spark up to 1080P@60fps - VP8 up to 1080P@60fps - AVS/AVS+ JiZhun Profile up to 1080P@60fps - WMV9/VC1 SP/MP/AP up to 1080P@60fps - JPEG HFIF file format up to 45M PPS - Multiple language and multiple format sub-title video support - MJPEG and JPEG unlimited pixel resolution decoding (ISO/IEC-10918) - Supports JPEG thumbnail, scaling, rotation and transition effects - Supports *.mkv,*.wmv,*.mpg, *.mpeg, *.dat, *.avi, *.mov, *.iso, *.mp4, *.rm and *.jpg file formats |
| Audio Decoder | Supports MP3, AAC, WMA, FLAC, Ogg. |
X96Q Pro Allwinner H313: A Low-Price Set-Top Box with Some Limitations
The X96Q Pro Allwinner H313 set-top box is positioned as an affordable option in the market. Let's explore its features and what it has to offer.

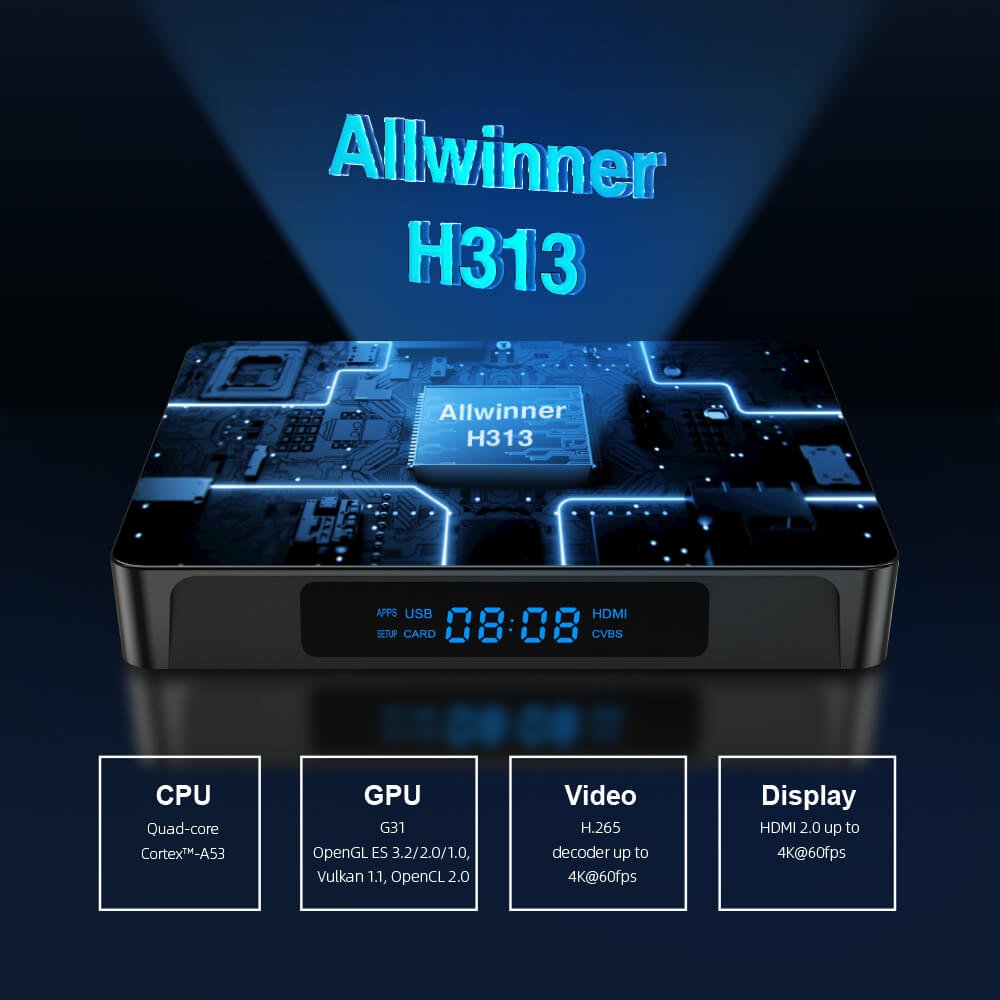

Running on Android 10, it is powered by the Allwinner H313 Quad Core ARM Cortex A53 processor. This provides a reasonable level of performance for basic media playback and some common applications. However, it may struggle with more resource-intensive tasks or higher-quality video streaming.
The Mail-G31 OpenGL ES 3.2 graphics processor ensures decent visual quality for standard video content. But for those who expect top-notch graphical performance, especially for gaming or high-definition media, it may not meet their expectations.
With memory configurations of (1+8G) and (2+16G) of DDR+ROM, the storage and memory are relatively limited. Users will need to manage their installed apps and media files carefully to avoid running out of space. It's not suitable for storing a large library of high-quality videos or a significant number of apps.
The box comes with 100M Ethernet connectivity, which is better than no Ethernet at all. However, in today's era of high-definition and 4K streaming, 100M may not be sufficient for a seamless experience, especially when multiple devices are sharing the network. Additionally, it only has WIFI 2.4G, which may not offer the fastest or most stable wireless connection. The lack of bluetooth support can be a drawback for those who want to connect wireless peripherals like speakers or keyboards.
The OEM service offers several customization options. You can have your logo printed on the housing and remote, customize the package box and user manual, and even modify aspects such as the boot image, boot animation, launcher, UI, APP, and function. This allows for a certain degree of personalization. The ability to design a new PCBA and housing provides an opportunity for more advanced users or those with specific requirements to create a unique setup. The deep firmware custom, including modifying the uboot kernel and driver, is an added advantage for those with the technical know-how to optimize the device's performance and functionality.
In conclusion, the X96Q Pro Allwinner H313 is a low-price set-top box that has its pros and cons. It can be a good choice for budget-conscious users who mainly use it for basic media consumption and are willing to overlook its limitations in terms of performance and connectivity. However, for those who demand a more enhanced and feature-rich experience, they may need to consider other options. But overall, it does offer a certain level of functionality and customization at an affordable price.
SunnyTV Technology is a prominent figure in android tv boxes manufacturer in China, making waves in the international media-tech market. Our focus since establishment has been on delivering top-notch television products and services.
Our product catalogue showcases a wide range of advanced TV boxes, all engineered with precision and care. We combine the best of technology and design to offer a superior viewing experience.
With our expert OEM and ODM teams, we can tailor our products to meet the unique demands of clients. We pride ourselves on our flexibility and ability to adapt to different market needs.
We are passionate about technology and constantly strive to improve and innovate to provide the best possible solutions to our customers.
the most popular android tv box from China manufactuer
First, we have in - depth discussions with you to fully understand your requirements, including new functions you want to add, any existing bugs to be fixed, and specific performance optimizations. Then, our engineers start the firmware development work. This includes code writing, debugging, and integration testing. After the development is completed, we will provide you with a beta version of the modified firmware for your internal testing. Based on your feedback, we will make further adjustments and optimizations until it meets your satisfaction.
First, we have in - depth communication with you to understand your detailed requirements, such as performance indicators, interface needs, and size limitations. Then, our engineers start the design work, including schematic design, PCB layout, and simulation analysis. After the design is completed, we will provide you with design drawings and BOM (Bill of Materials) for your review. Once approved, we can proceed to the sample production and testing stage.
Our TV boxes support a wide variety of video formats, including MP4, AVI, MKV, FLV, and more, ensuring you can enjoy various media content.
Our IPTV boxes support a wide range of popular streaming protocols to meet diverse user needs. For live streaming, we support the RTP (Real - Time Transport Protocol) over multicast, which is widely used in IPTV systems for its ability to efficiently distribute video content to multiple users simultaneously, reducing the load on the server. It works in tandem with RTCP (Real - Time Control Protocol) for quality control and member management.
When it comes to on - demand services like video - on - demand and time - shifted media, we support RTSP (Real - Time Streaming Protocol). RTSP is used for controlling the streaming media, such as starting, pausing, and rewinding the media playback. It can operate on top of RTP for data transfer, and the data can be transmitted via UDP for lower - latency transmission or TCP for more reliable transfer in some cases.
In addition, considering the popularity of mobile and web - based viewing, our IPTV boxes also support HLS (HTTP Live Streaming). HLS is a HTTP - based adaptive bitrate streaming communications protocol developed by Apple. It's highly compatible with various devices and platforms, allowing users to smoothly stream content on their smartphones, tablets, and web browsers. This protocol segments the video into small chunks and delivers them over HTTP, which can adapt to different network bandwidth conditions to ensure a seamless viewing experience.
Yes, we can provide you with a detailed firmware update plan and tools. This includes creating user - friendly update instructions, developing an over - the - air (OTA) update mechanism if required, and providing technical support to ensure a smooth firmware update process for end - users.
We offer a one - year warranty for all our Android TV boxes. If there are any quality problems during the warranty period, we will provide free repair or replacement services.
Yes, we have completed several successful TV Box PCBA design projects for different customers. These projects cover various application scenarios and performance requirements. We can share some relevant case studies and technical details with you to help you better understand our design capabilities.
We accept various payment methods, including PayPal and bank TT transfers.
Our standard turnaround time for TV boxes orders is 1-3 business days. For OEM order, it depends on the requirement
For a small order, it can start from 1 piece. For an OEM order, the minimum order quantity (MOQ) is 500 pieces.
